Deye inverter
The exact inverter model and power rating are specified in your quotation to match the agreed requirements.
Deye inverter + Deye battery storage
The BOS-G Pro bundle range.
Explore Deye BOS-G Pro high-voltage battery storage with a Deye inverter specified around your project requirements.
30–50kW inverter enquiries
Exact models, battery configuration and compatibility confirmed before ordering. Pricing and availability on quotation.
Configuration confirmed on quotationOptional LONGi panelsEquipment supply only
Standard supply: battery system · inverter / PCS · PV panels. Site protection, cabling, mounting / racks, combiners, switching, installation and other site materials are excluded unless a formal quotation explicitly states otherwise.
The core bundle components
These are the main components in this range. Your quotation specifies the exact equipment and quantities included in your order. Our standard supply categories are battery systems, inverters / PCS and PV panels.

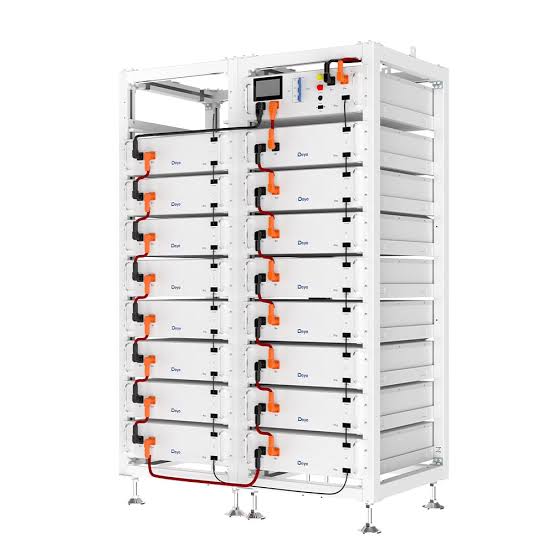

BOS-G Pro HV battery modules
Battery module quantity, total capacity and the proposed configuration are confirmed for your project.
BOS-G Pro battery system
The quotation identifies the exact battery configuration and manufacturer-matched subcomponents forming part of the supplied battery product, where applicable.
Build your enquiry
Tell us the equipment you need.
Share your installer’s specification or start with the details you already know. You can request guidance where requirements are still undecided.
- Inverter requirementPreferred power rating and exact model, if known.
- Battery requirementPreferred capacity or a description of your project.
- PV panelsPanel wattage and quantities you want considered.
- Location and timeframeYour town or city and expected collection timeframe.
BOS-G Pro specifications
Manufacturer specifications from the April 2026 BOS-G Pro series brochure. Choose a capacity to discuss; the final series configuration depends on the exact inverter.
- Cell chemistry
- LiFePO₄ (LFP)
- Battery module
- BOS-G-Pack5.1
- Nominal energy per module
- 5.12 kWh
- Nominal voltage / capacity per module
- 51.2 V / 100 Ah
- Published battery-family series range
- 5–16 modules
- Published nominal system energy examples
- 5 modules: 25.60 kWh; 8: 40.96 kWh; 12: 61.44 kWh; 16: 81.92 kWh
- Recommended depth of discharge
- 90%
- Enclosure protection
- IP20
Choosing your configuration
These are battery-family options, not an approved pairing list for every Deye inverter. Check both the lower and upper operating voltage, current and BMS requirements before choosing a module count.
The brochure’s usable-energy figures use 90% depth of discharge, 0.3C charge/discharge and 25°C. Actual usable energy and power depend on the configuration and operating conditions.
What your quotation should include
Battery modules, compatible cluster control box, rack arrangement, inter-rack connections and included cables. A brochure example does not change the equipment specified in your quotation.
Nominal energy (kWh) is storage capacity, not continuous output (kW). These specifications do not guarantee runtime, current stock or compatibility with every inverter. Warranty terms are confirmed for the supplied equipment.
Warranty evidence
BOS-G Pro · 10-year manufacturer warranty
Deye's official product page lists 10 years. Final coverage remains subject to the applicable warranty policy, region and supplied revision.
Good practice: keep the exact model / revision, serial numbers, original invoice, installation date, commissioning records and fault evidence together with the system handover pack.
Deye high-voltage hybrid inverters
Include your preferred model in your enquiry. The selected inverter, battery configuration and compatibility are confirmed for your project before ordering.
SUN-30K-SG02HP3-EU-AM3
Deye high-voltage hybrid inverter
SUN-50K-SG01HP3-EU-BM4
Deye high-voltage hybrid inverter
Documents open on Deye’s website in a new tab. Listed models are enquiry options; they do not establish compatibility with every battery range.
Before you request a quote
Can I request a specific inverter size?
Yes. Include your preferred size or exact model in your enquiry. This range accepts enquiries for 30–50kW inverter requirements. The exact inverter and battery combination must be confirmed; not every model and battery configuration can be used together.
How much battery capacity is included?
There is no single fixed battery capacity for this range. Tell us your preferred capacity, or describe your project if you need guidance. Your quotation specifies the battery module quantity and total capacity.
How do I choose between BOS-G Pro and BOS-B Pro?
Send us your preferred inverter, battery capacity and project requirements. We can clarify which range to consider for your enquiry. Final selection depends on the exact equipment and configuration, with compatibility confirmed before ordering.
Can I add LONGi panels?
Yes. Request LONGi 590W, 620W or 635W panels and your preferred quantity in the quote form. Exact models, availability and suitability for the selected inverter are confirmed before ordering.
Does the bundle include installation and all site materials?
Installation is not part of our standard supply. Protection equipment, cabling, mounting / racks, combiners, switching and other site materials are also outside the standard supply scope unless a formal quotation explicitly states otherwise.
How do I confirm stock and collection?
Include your required timeframe when requesting a quote. Availability and collection arrangements are confirmed with you. Wait until your order is confirmed ready and the location is agreed before arranging collection. Delivery is not included.
Your next step
Request a quote for your BOS-G Pro project.
Your range will be selected on the quote page. Add your requirements so we can clarify the configuration and check availability.
